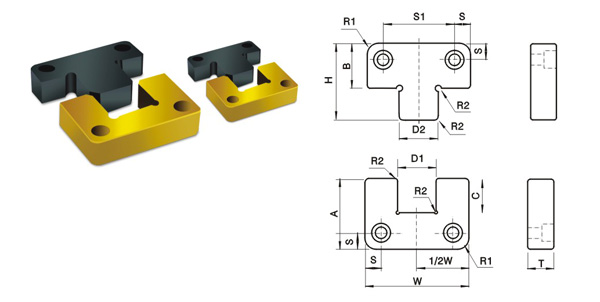

| BSL导位固定块 | | | |
|
Model
|
W
±0.001
|
A
±0.001
|
T
±0.001
|
B
±0.001
|
C
|
D1
+0.0003
|
D2
0-0.0003
|
H
|
R1
|
POCKET
RADIUS
|
R2
|
S
±0.010
|
S1
±0.010
|
SHCS
|
单价
|
BSL-37
|
1.0000
|
0.375
|
1.125
|
0.875
|
0.53
|
0.5000
|
0.4999
|
1.37
|
0.22
|
3/16
|
0.06
|
0.250
|
0.500
|
#10-32×1/2"
|
|
BSL-49
|
1.2500
|
0.490
|
1.125
|
0.875
|
0.66
|
0.5000
|
0.4999
|
1.50
|
0.22
|
3/16
|
0.06
|
0.250
|
0.750
|
#8-32×5/8"
|
|
BSL-50C
|
1.5000
|
0.500
|
0.875
|
0.875
|
0.56
|
0.5630
|
0.5629
|
1.40
|
0.22
|
3/16
|
0.06
|
0.250
|
1.000
|
#8-32×5/8"
|
|
BSL-50
|
2.0000
|
0.500
|
1.375
|
0.875
|
0.66
|
0.7500
|
0.7499
|
1.50
|
0.22
|
3/16
|
0.06
|
0.312
|
1.376
|
#10-32×5/8"
|
|
BSL-75
|
3.0000
|
0.750
|
1.875
|
0.875
|
1.13
|
1.2500
|
1.2499
|
1.96
|
0.28
|
1/2
|
0.12
|
0.375
|
2.250
|
1/4-20×3/4"
|
|
BSL-100
|
4.0000
|
1.000
|
2.375
|
1.375
|
1.25
|
1.5000
|
1.4999
|
2.59
|
0.53
|
1/2
|
0.12
|
0.500
|
3.000
|
3/8-16×1"
|
|
BSL-125
|
5.0000
|
1.250
|
2.875
|
1.375
|
1.63
|
2.0000
|
1.9999
|
2.96
|
0.53
|
1/2
|
0.12
|
0.625
|
3.750
|
1/2-13×1 1/4"
|
|
BSL-150
|
6.0000
|
1.500
|
2.875
|
1.375
|
1.75
|
2.5000
|
2.4999
|
3.09
|
0.53
|
1/2
|
0.12
|
0.625
|
4.750
|
10-32×1 1/2"
|
|
|
